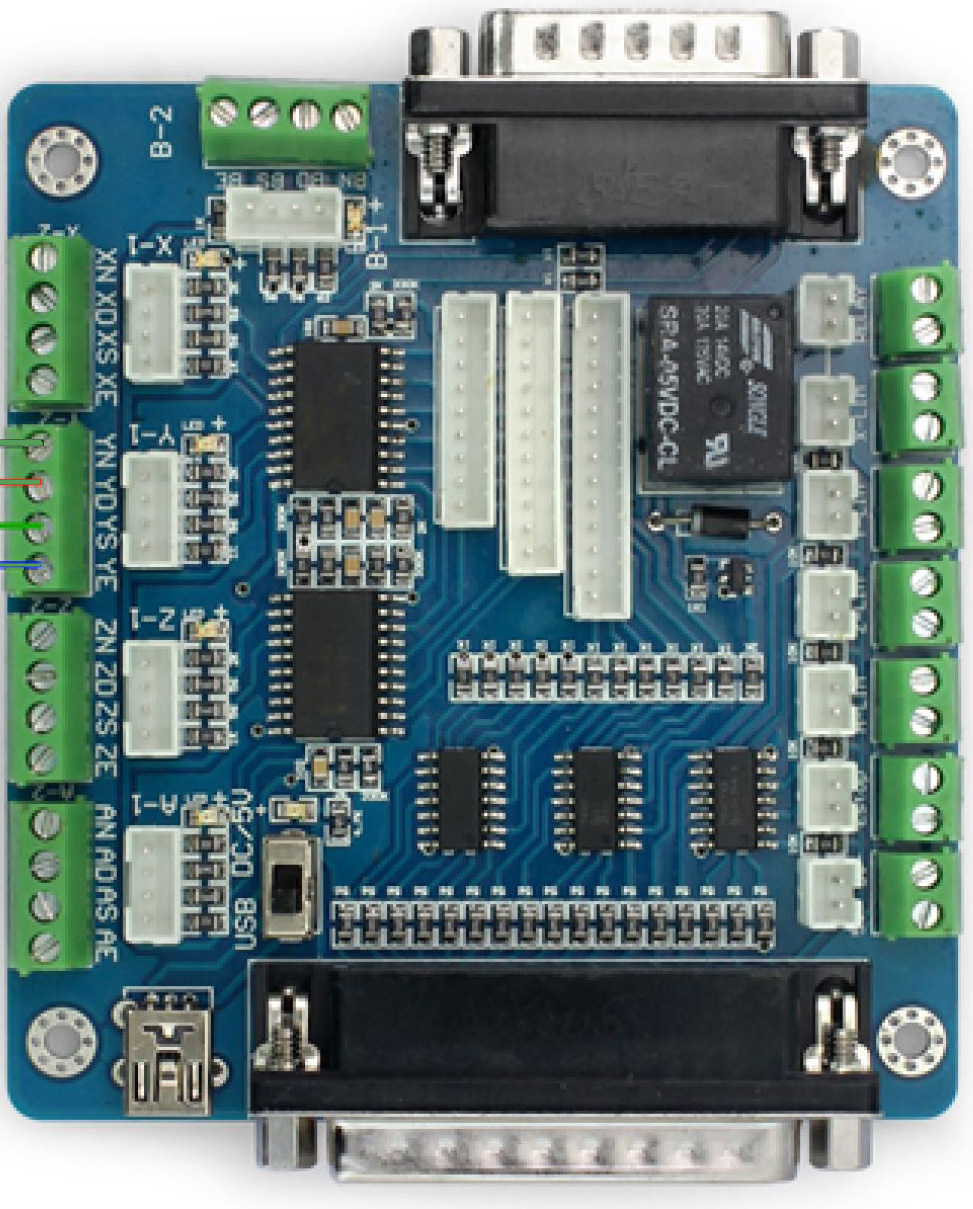

5-Axis CNC Breakout Board

£20.00 ex. VAT

8 in stock

12 Months Return to base Warranty
Secure Payments

Worldpay Payments

Description

5-Axis Breakout Board for controlling stepper drivers via the computers parallel port.
Ideal for MACH3 software.

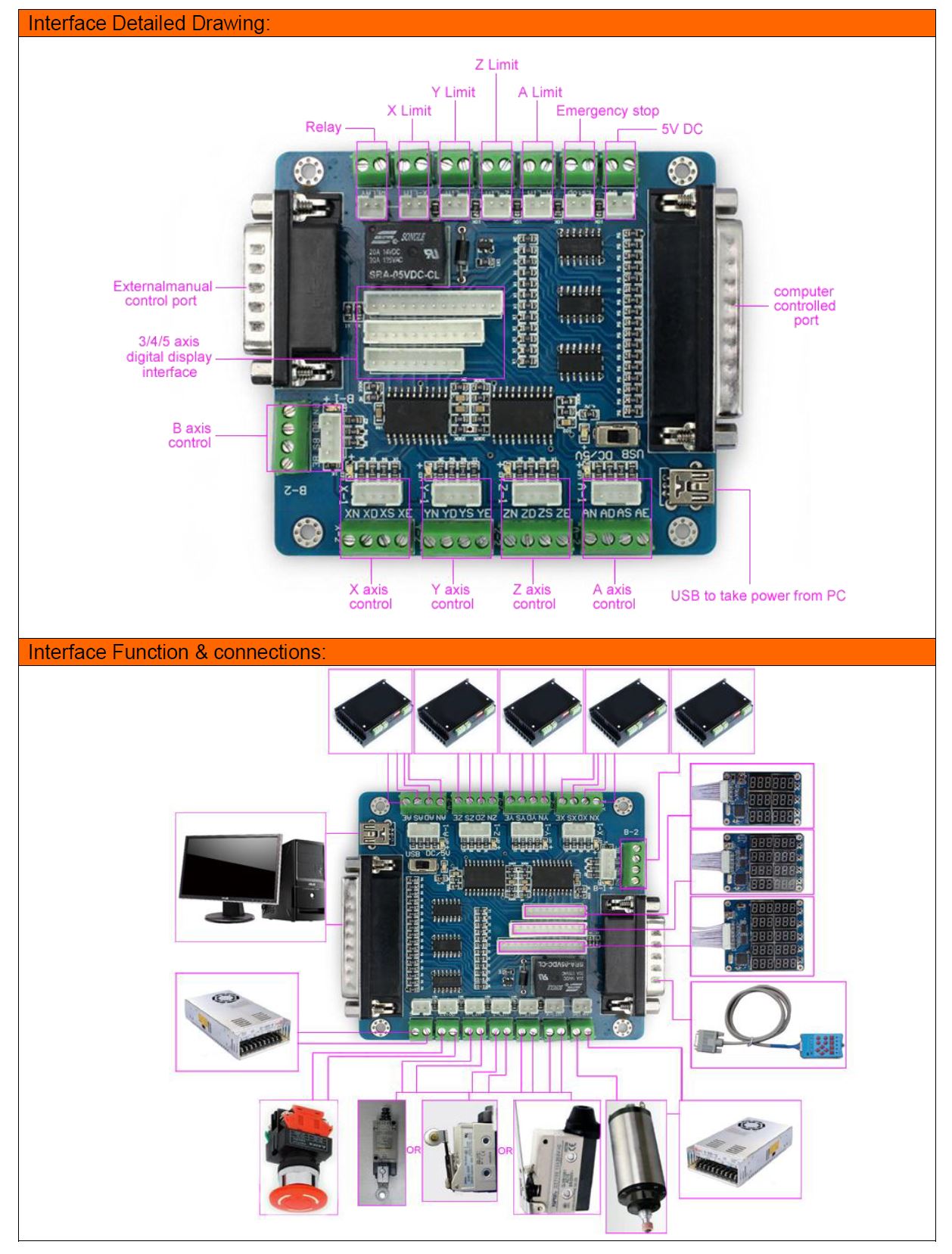

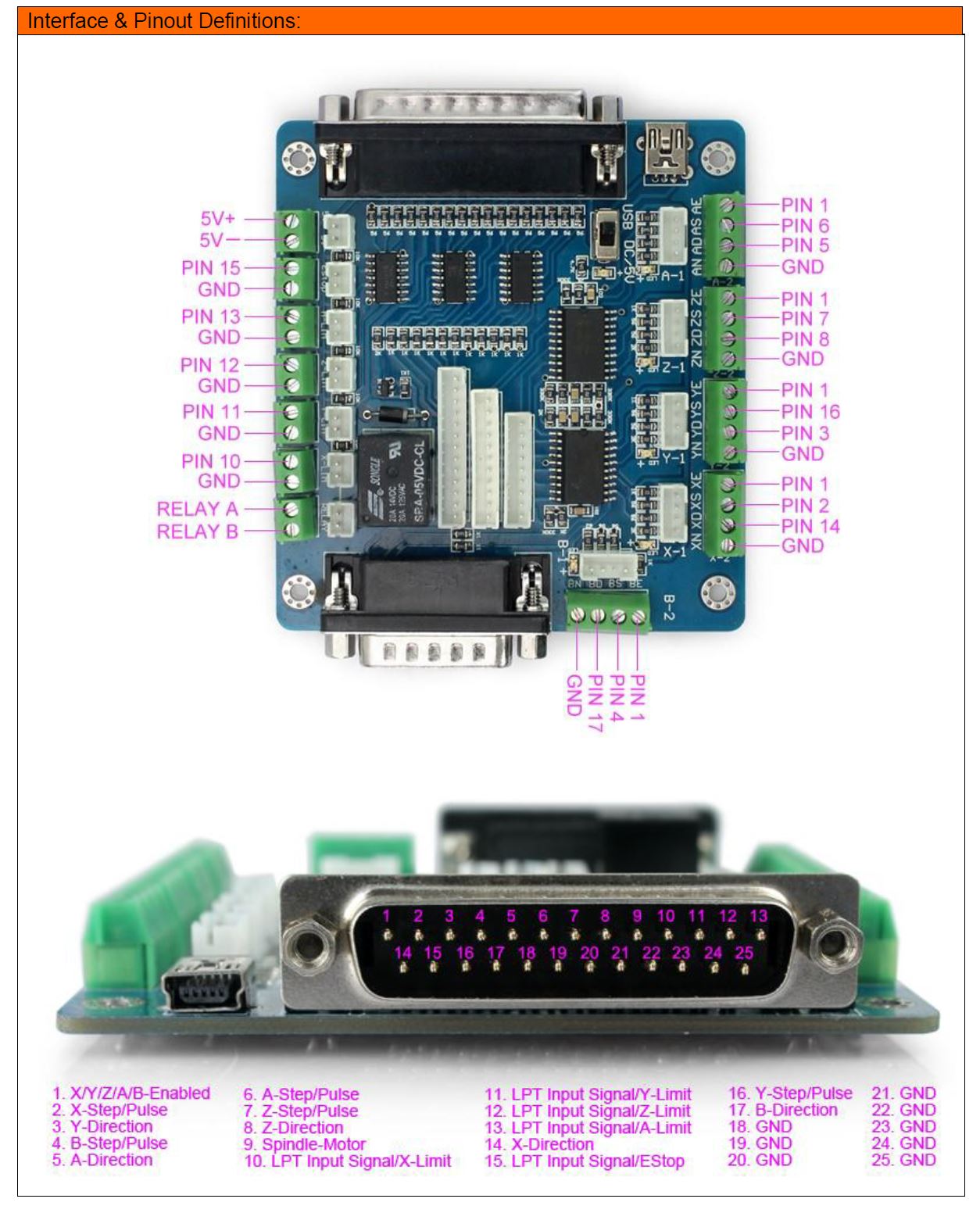

Step, DIR, Enable connections for each stepper driver.
Limit switch inputs for each Axis.
Emergency Stop input.
Jog Pendant input port.
5V DC power connectors for using external power or can use the computers 5V DC from the USB port.
Onboard relay for switching spindle.
