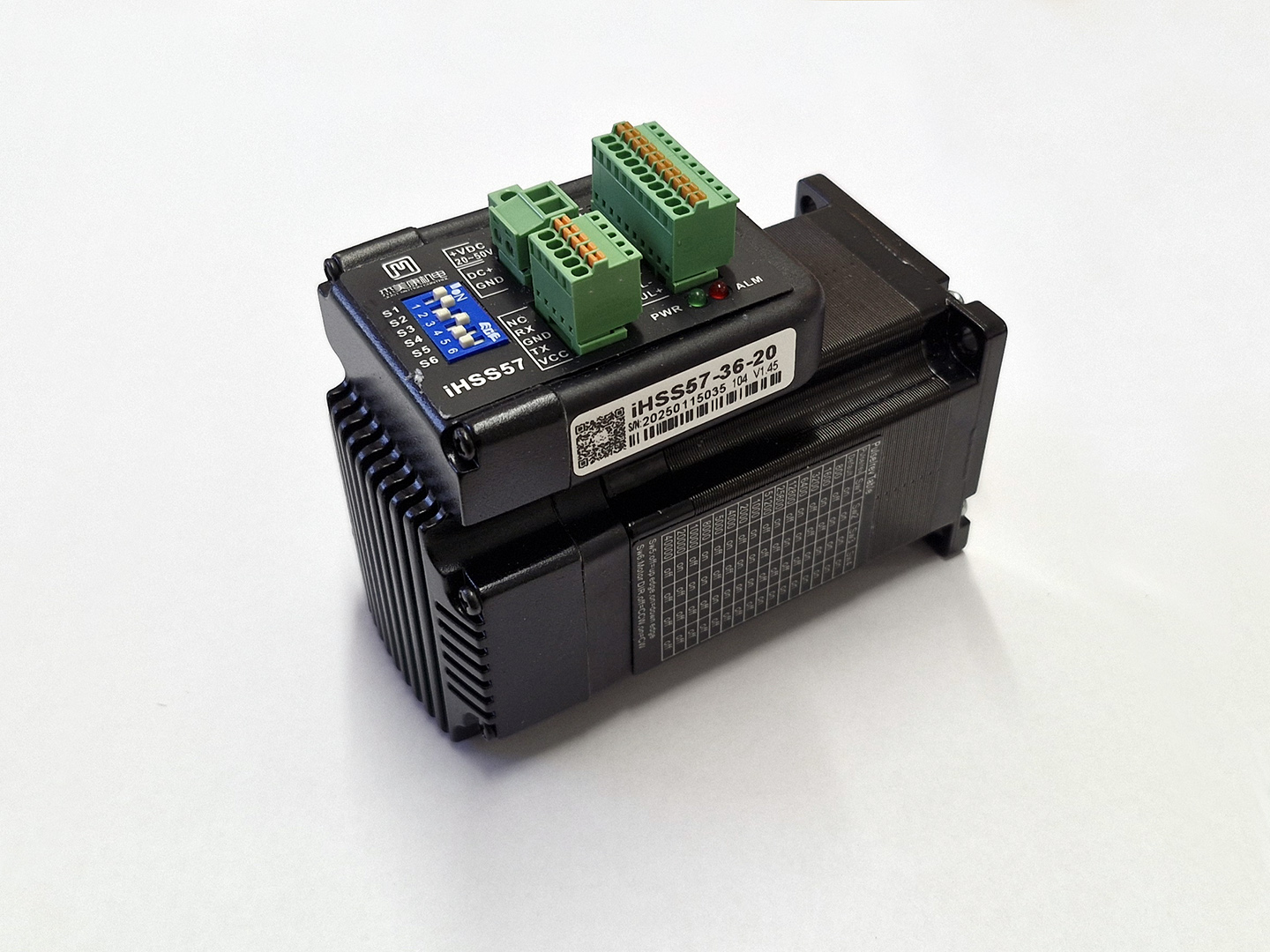

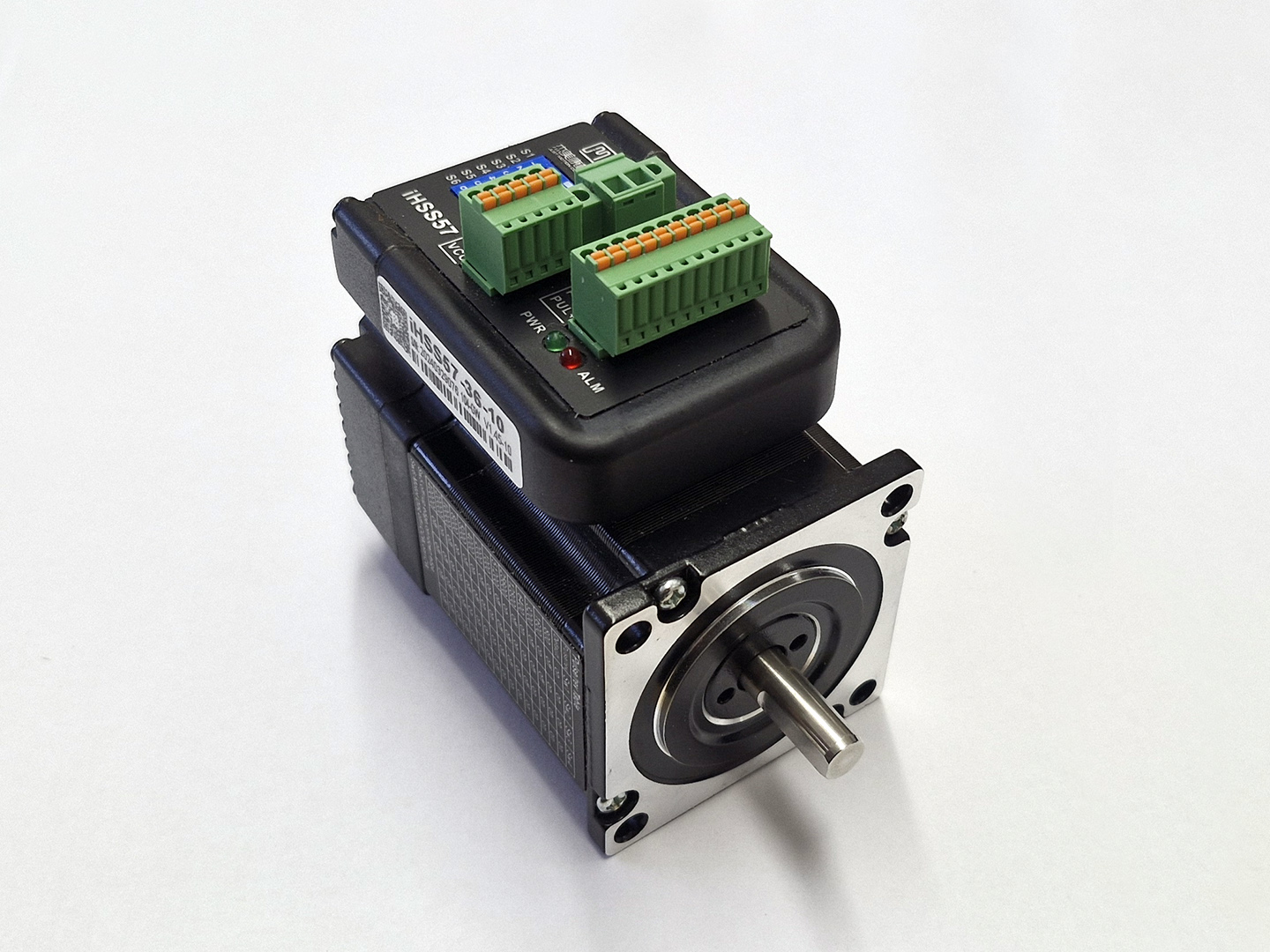

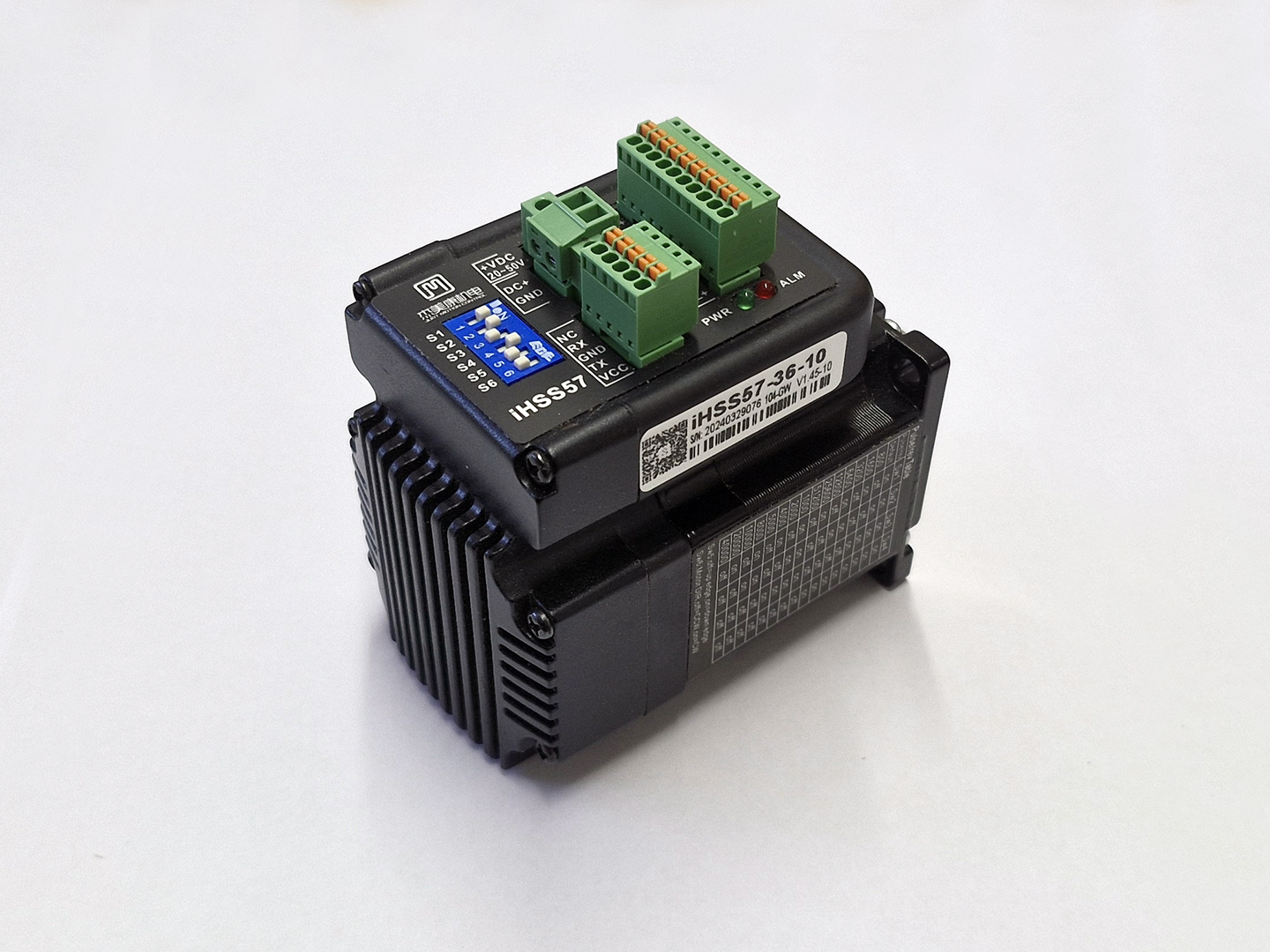

The JMC IHSS57-36 Series Stepper Motor features a space saving integrated driver removing the need for an enclosure that would hold larger external drivers. This motor uses easy to control Step & Direction signals to modify the position of the motor, the closed loop system provides Realtime feedback to accurately adjust the rotation so no steps are missed. The resolution can be adjusted using the microswitches on the front of the driver, there are 16 different combinations ranging from 400 – 40,000 pulses per revolution.

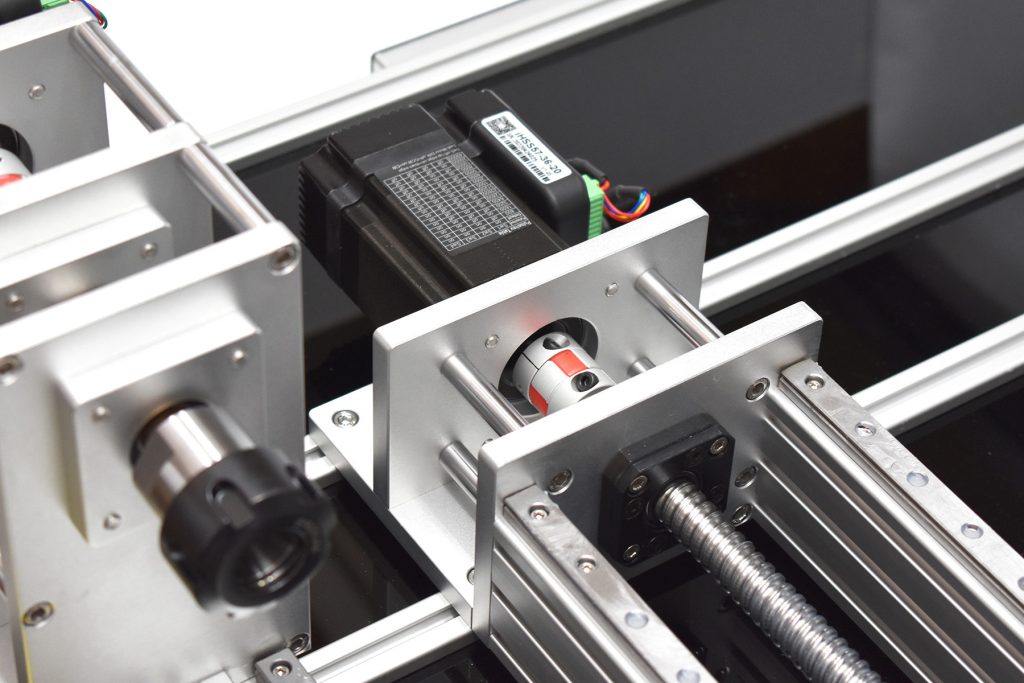

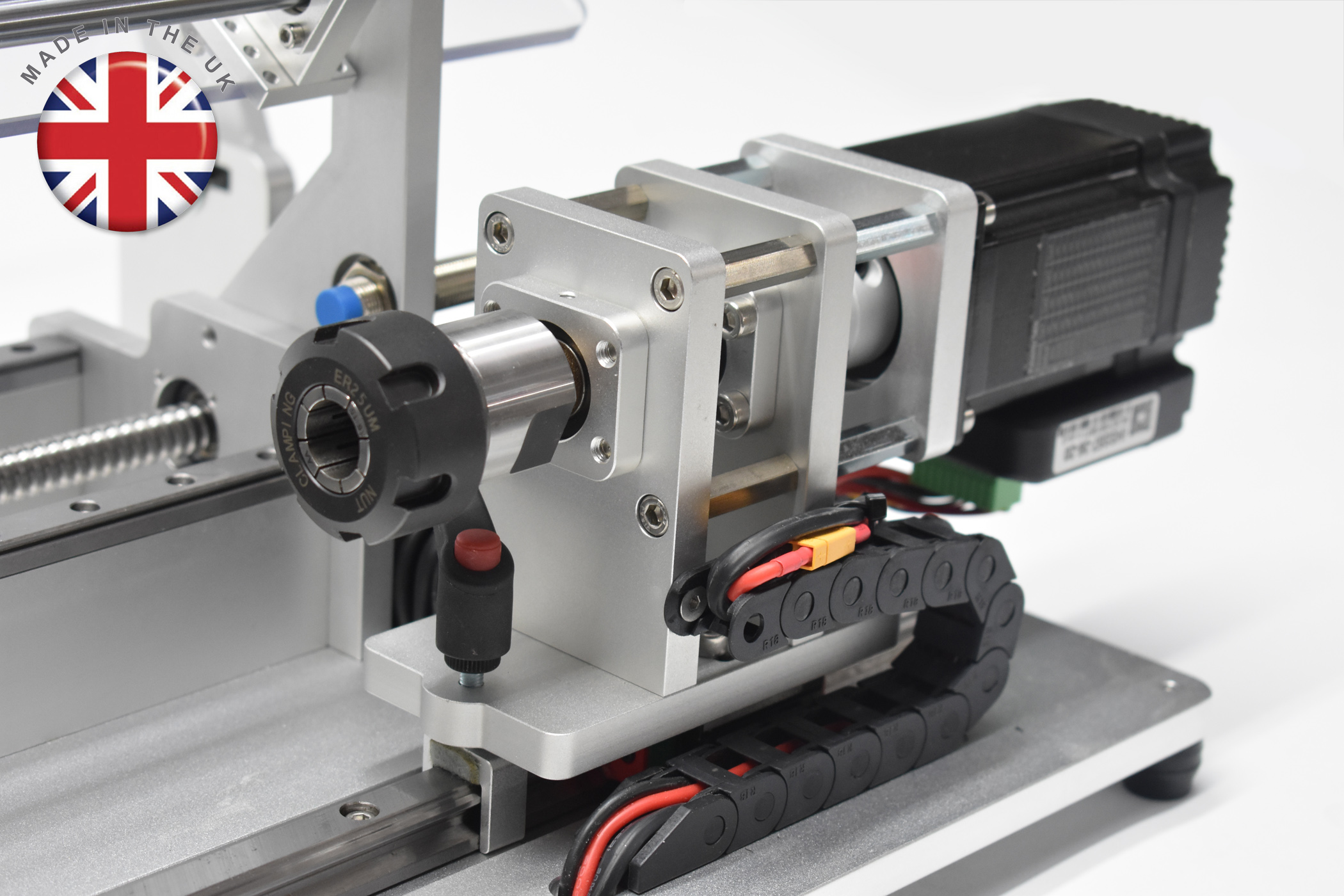

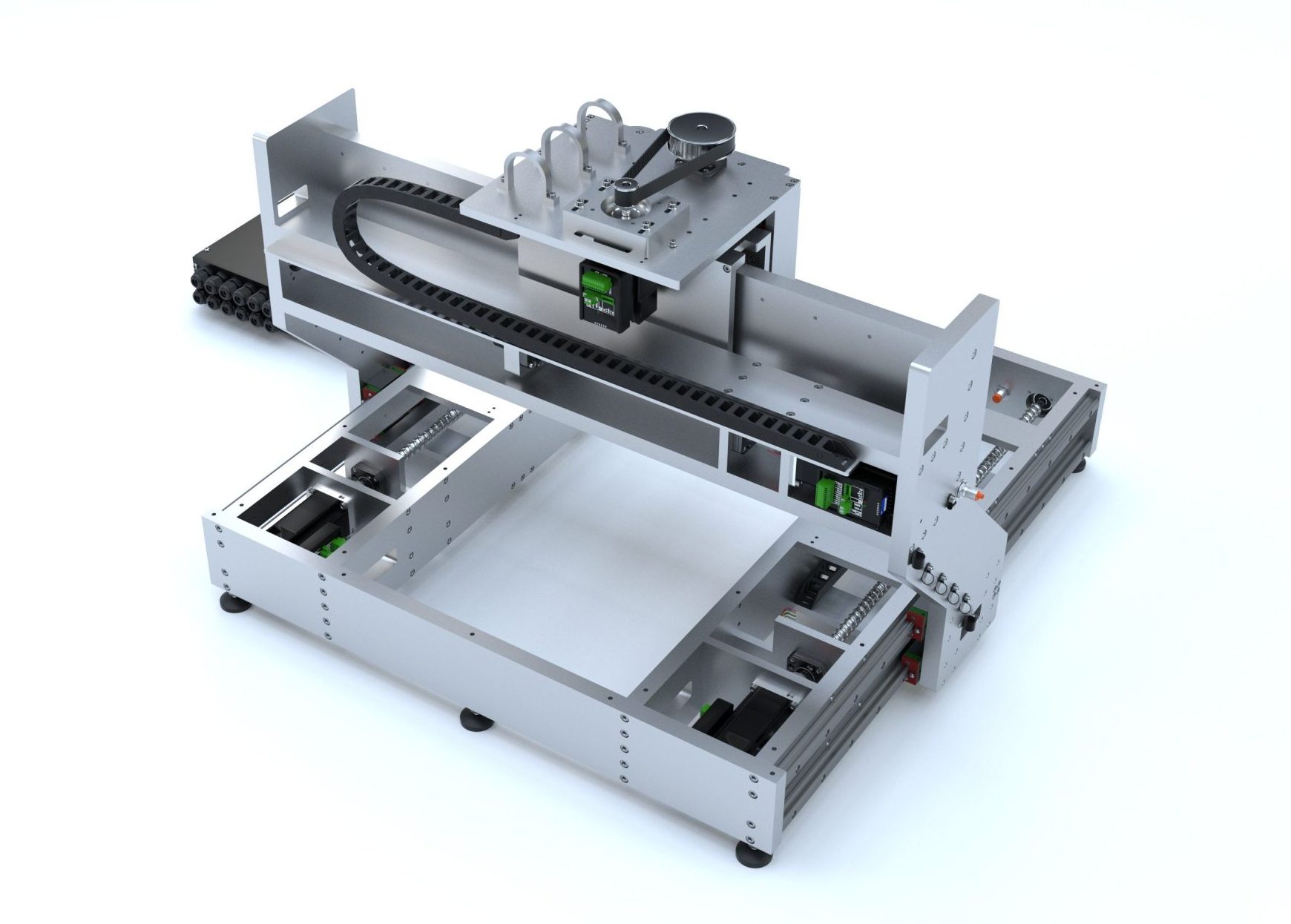

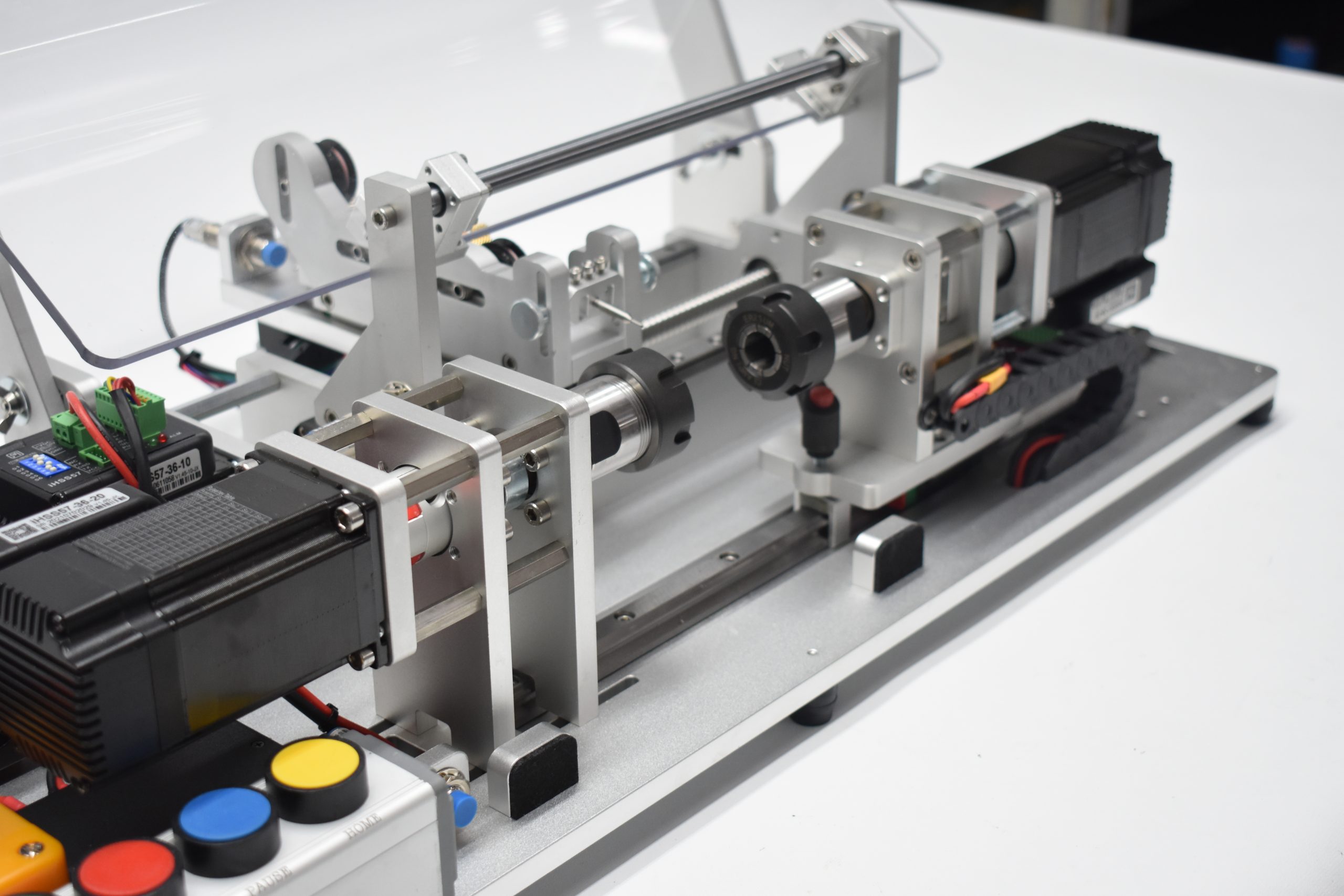

We use these motors on our CNC 200mm Coil Winding Machine, CNC Guitar Pickup Quad Coil Winder, CNC D-500 Routing Machine and our CNC Custom 600mm Coil Winding Machines. They are highly reliable motors that allow our machines to operate smoothly with pinpoint precision.

These Motors are genuine motors supplied from JMC directly they are suitable for 3D-printers, coil winding machines, CNC routers, lathes, robots, milling machines, or motorised gantries. Compatible with CNC controls such as Beamicon, Eding, Estlcam, GRBL, Linuxcnc, Mach3 and many more.

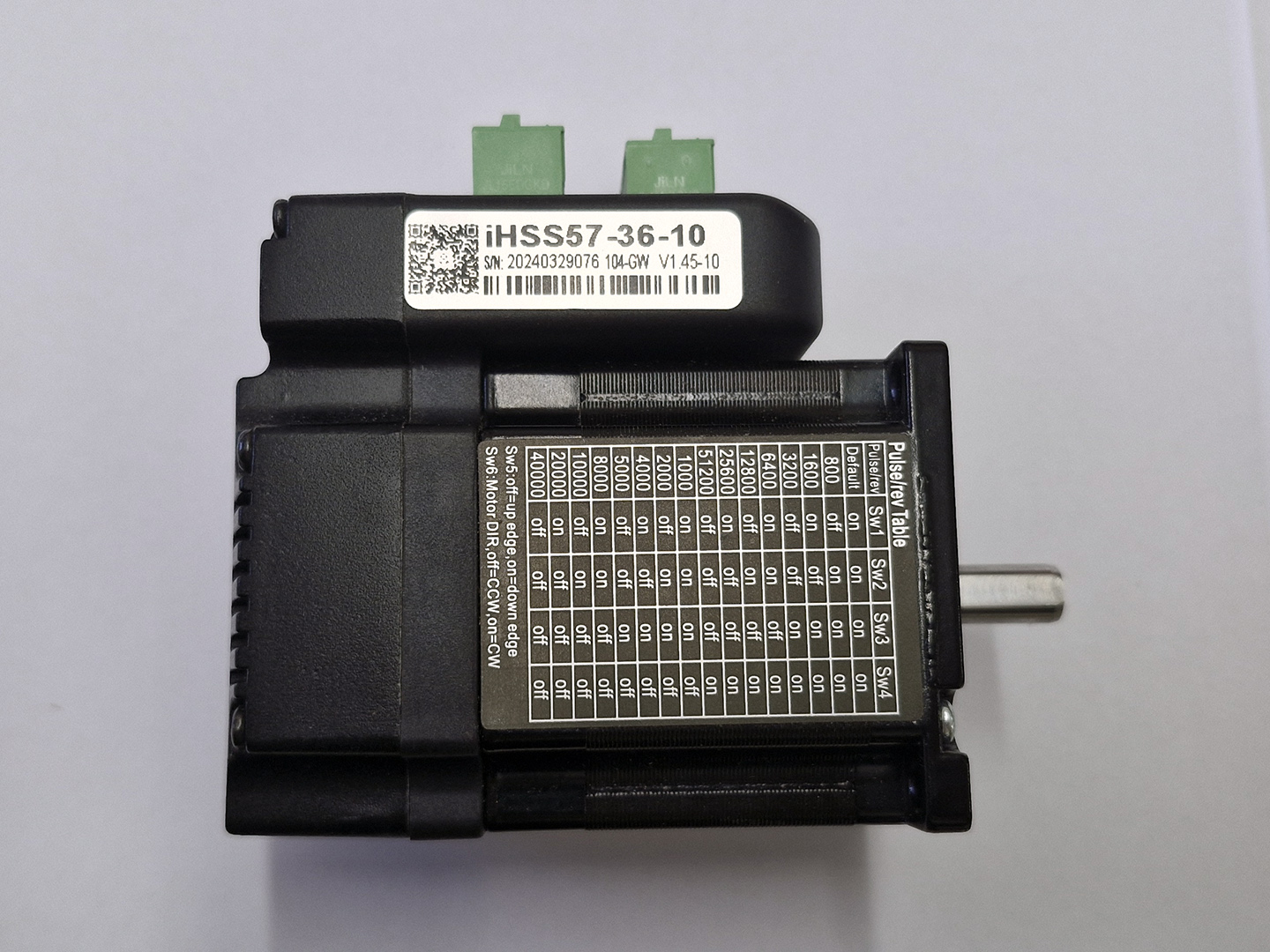

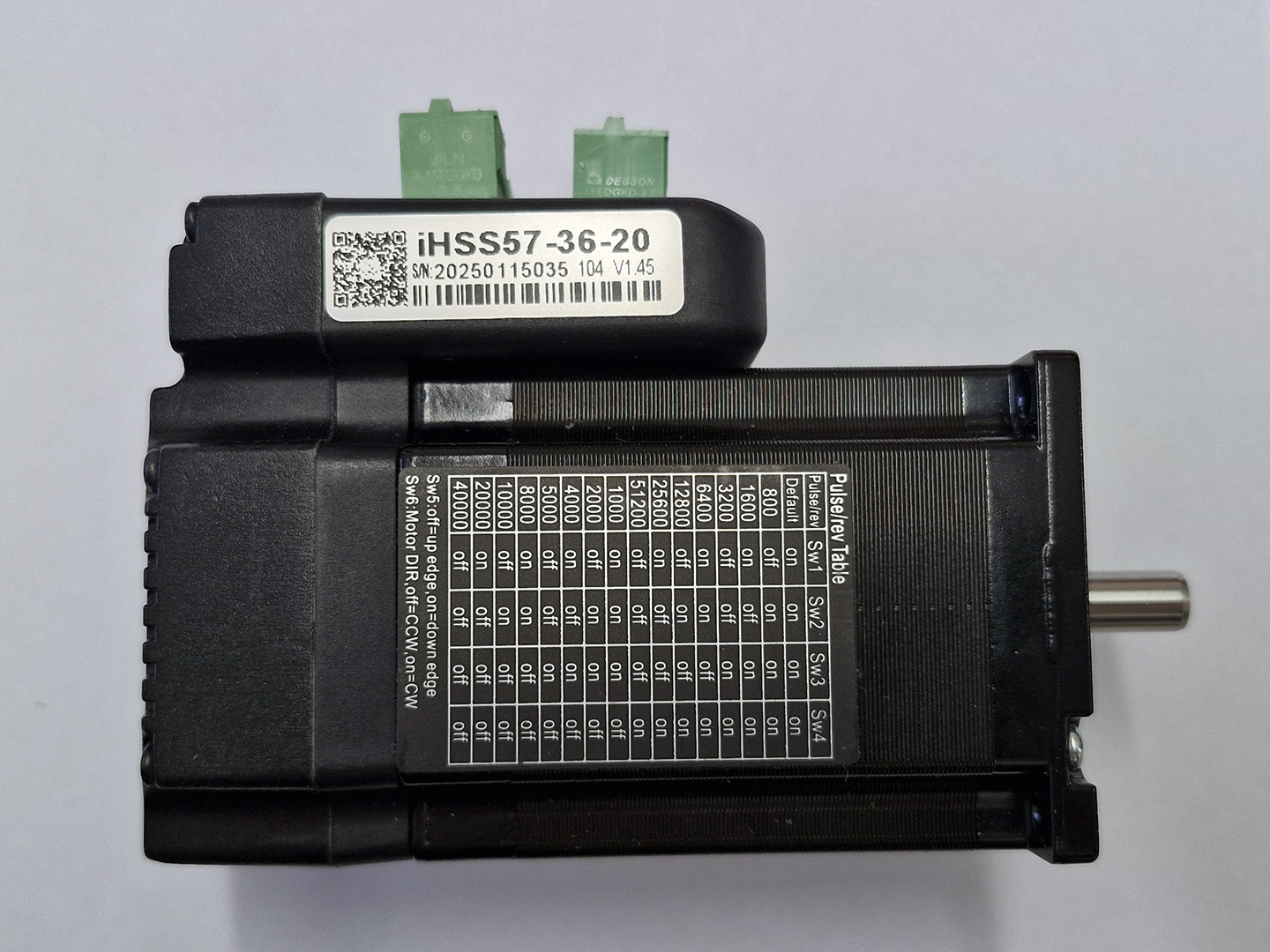

Microstep Table

Specification

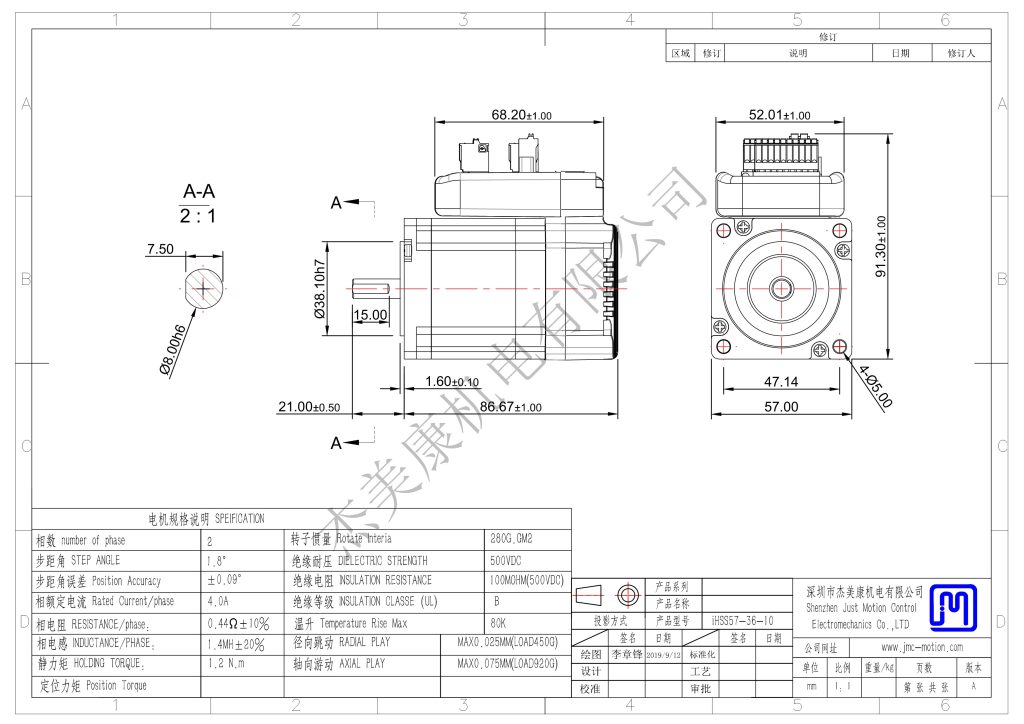

IHSS57-36-10 Drawing

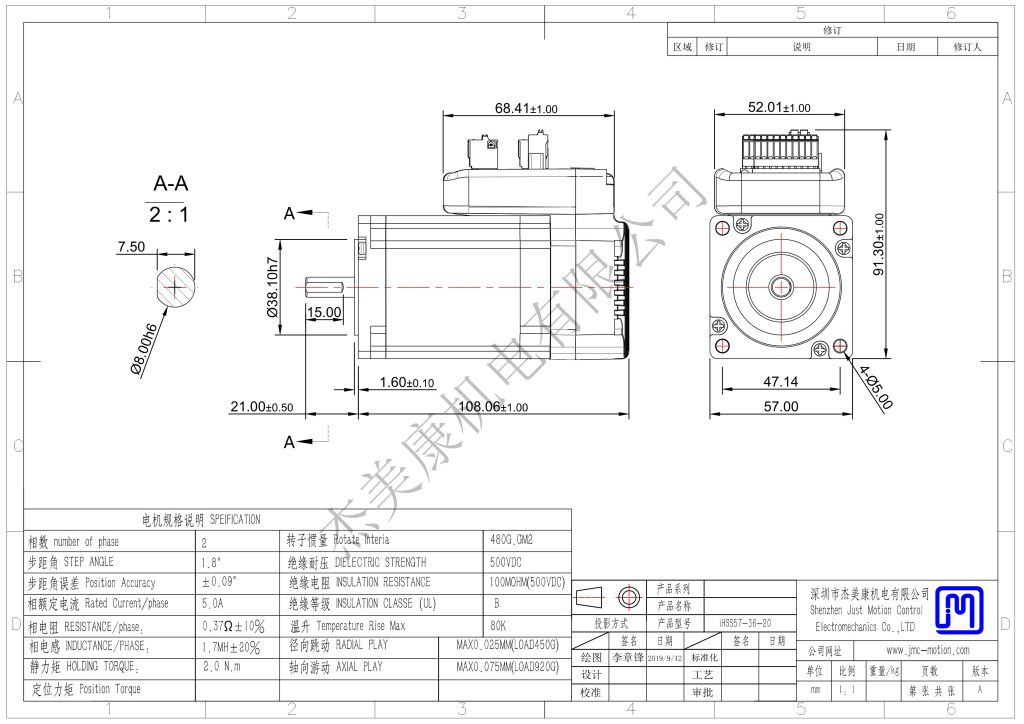

IHSS57-36-20 Drawing

Holding Torque	IHSS57-36-10: 1Nm, IHSS57-36-20: 2Nm
Step Angle	1.8 deg
Step Angle Accuracy	+0.09 deg
Encoder line	1000 lines
Rated Voltage	36v DC
Power Supply	24v – 50v (Typically 36v)
Current	IHSS57-36-10: 4A, IHSS57-36-20: 5A
Pulse Frequency	200 KHz
Resistance/phase	0.44Ω±10%
Inductance/phase	1.4MH±20%
Temperature Rise Max	80℃
Dielectric Strength	500VDC
Rotor Inertia	280g.cm²
Radial Play	Max 0.025mm (load 450g)
Axial Play	Max 0.075mm (load 920g)
Frame Size	57x57mm
Body Length	IHSS57-36-10: 86.7mm, IHSS57-36-20: 108mm
Shaft Length	21mm
Shaft Diameter	8mm
D-cut Length	15mm
Weight	1kg
